Digitální USB mikroskop Bresser DST1028 USB

Detailní popis produktu

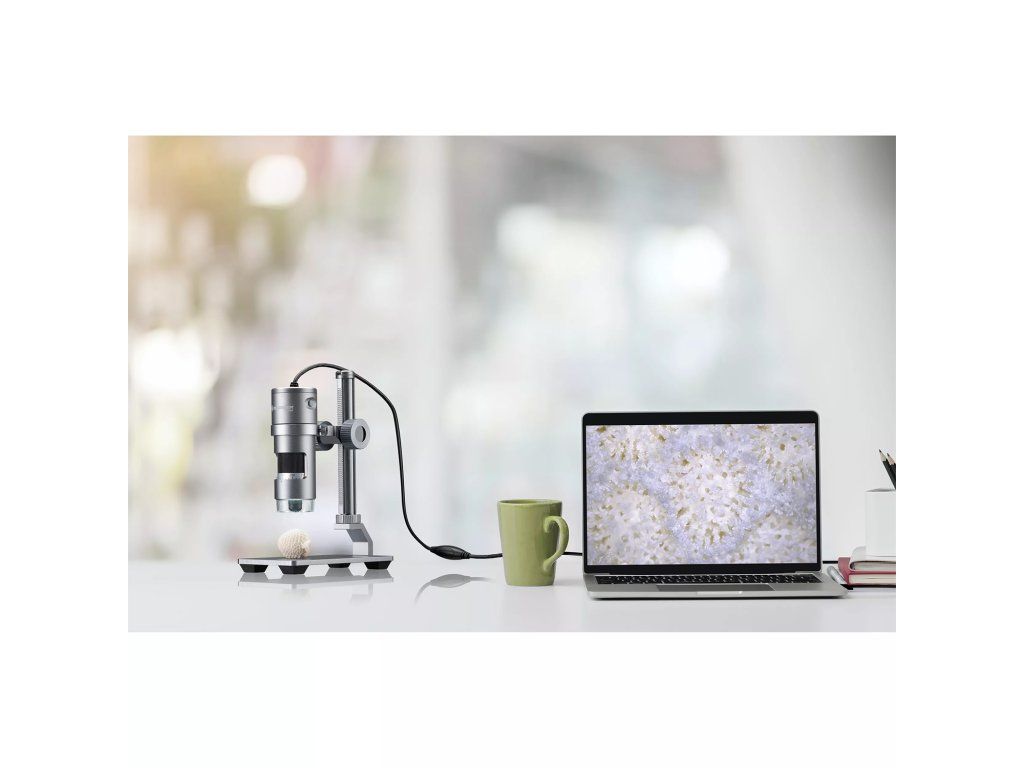

The Bresser USB Digital Microscope DST-1028 5MP enables easy and convenient observation of your specimen on the computer with detailed images. The digital handheld microscope is especially suitable for examining material samples, circuit boards and electronic components, but also plants, insects and much more. In addition to applications in school and hobby, the digital microscope is also suitable for tasks in quality assurance.

The device features high-quality optics with continuous zoom. This enables documentation of the specimen between 10x and 280x magnifications. Depending on the object to be examined, the appropriate magnification can always be selected. With its ring light, the digital incident light microscope ensures optimal illumination and high-contrast images of your specimen. The ring light consists of eight LEDs. The brightness can be conveniently controlled with the dimmer, which is integrated in the USB connection cable.

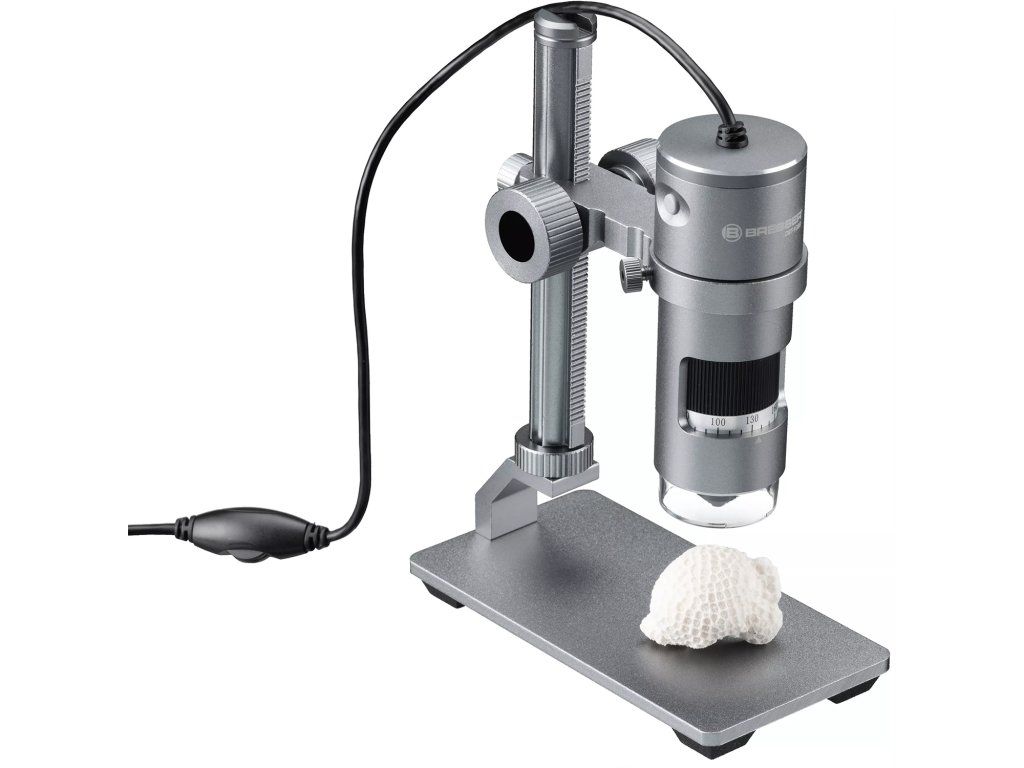

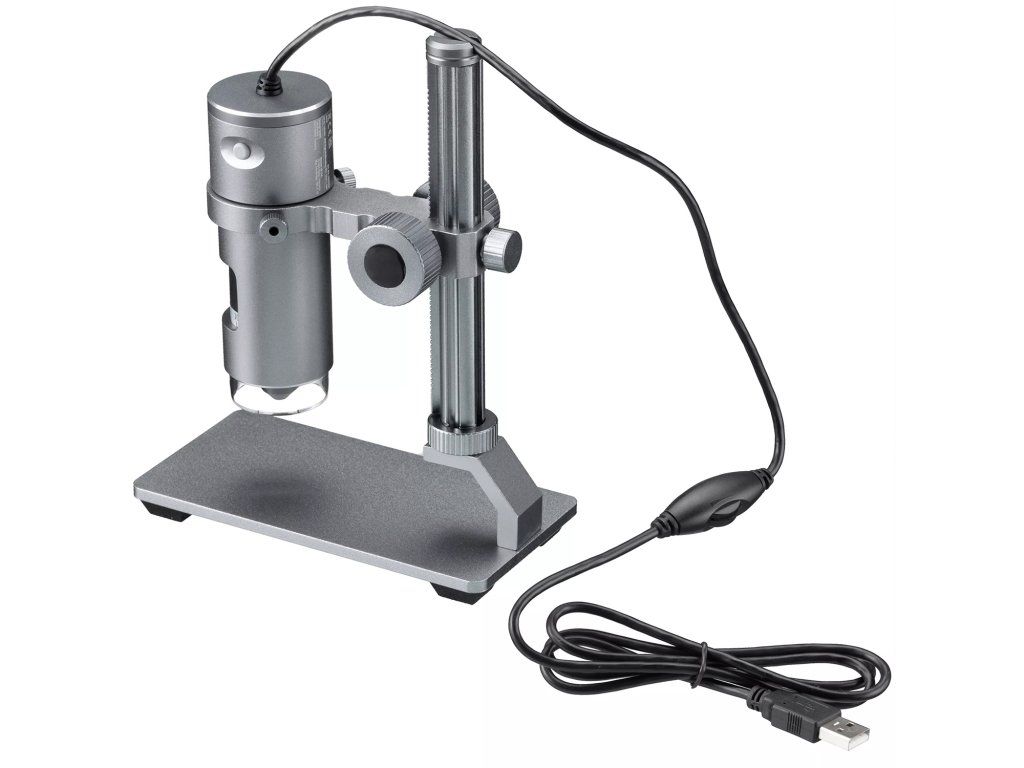

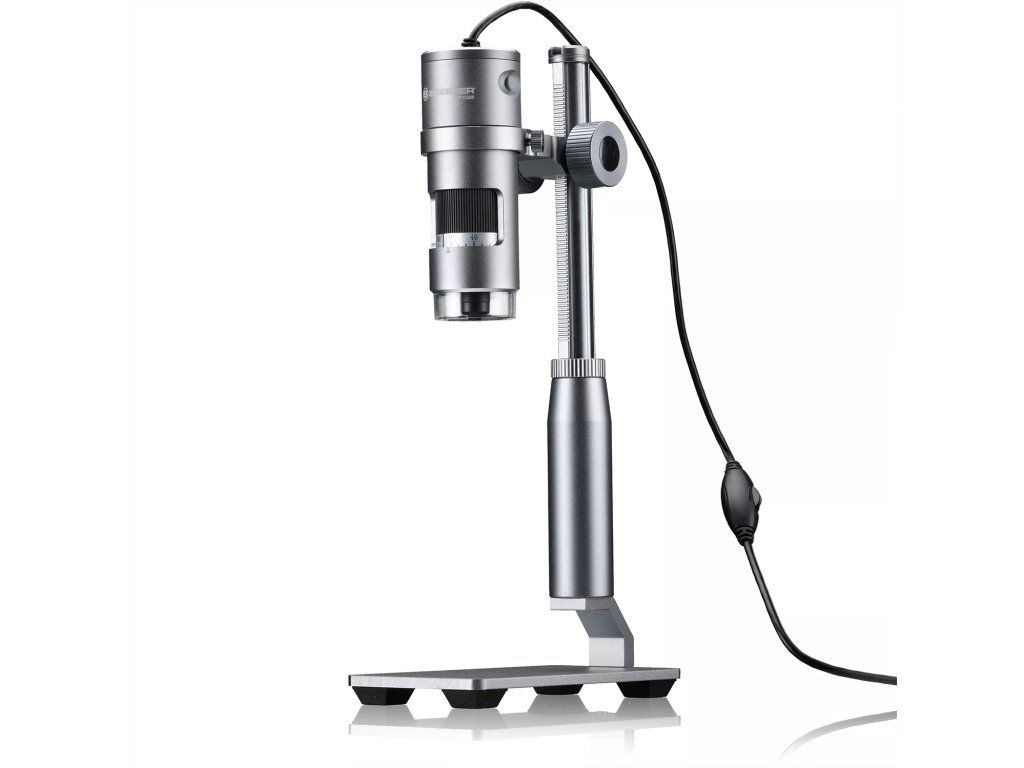

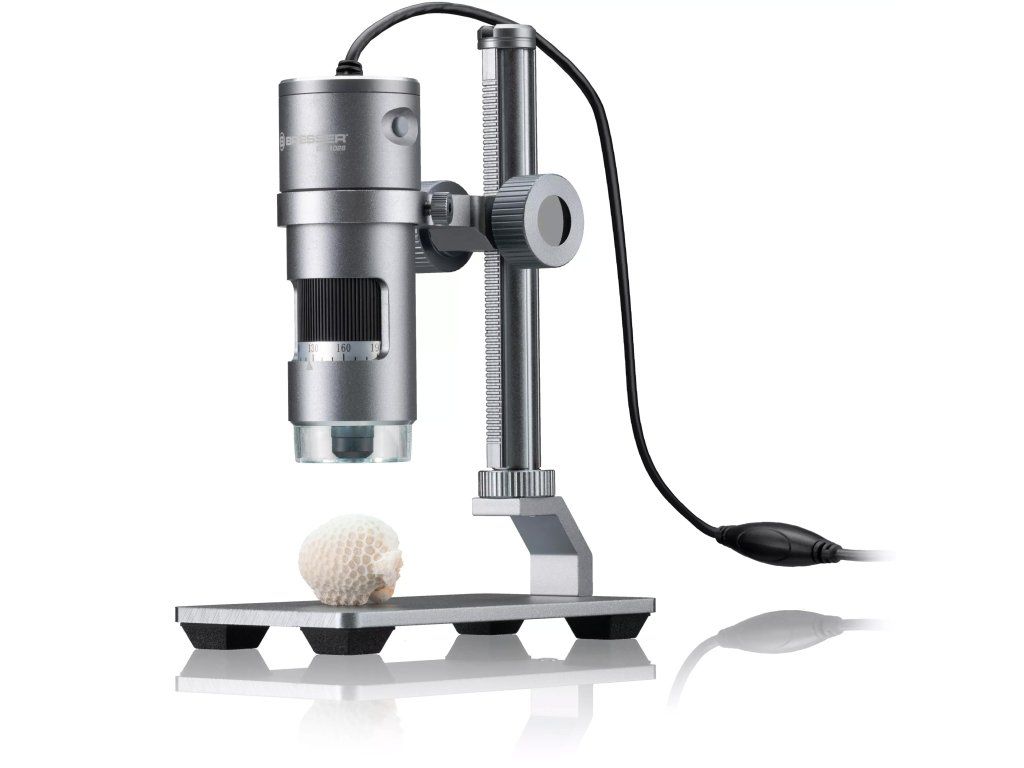

The microscope has a stable, adaptable metal stand, which can be adjusted in height depending on the object height and magnification used. This makes it possible to examine both larger and very flat objects (e.g. printing documents).

At low magnifications, the working distance is 110 mm, so that working with tools, e.g. for preparation, is possible underneath.

System requirements:

• Windows 10 or 11
• Intel i3, i5, i7 or i9 CPU from the 2nd generation or
• AMD FX or Ryzen CPU
• Optical Disk Drive or internet connection for software download
• USB 2.0

Key features:

• Digital USB incident light microscope with LED ring light
• High-quality optics with continuous zoom
• Generous working distance for larger objects
• Solid metal construction
• Cable length: 1.2m
• Image fields: 10x: 42x32mm / 100x: 4.2x3.2mm / 280x: 1.6x1.2mm
• Max. object height: 10x – ca. 45mm / 100x – ca. 160mm / 280x – ca. 170mm

The kit includes:

• Digital microscope incl. software download (for Windows only)
• Integrated USB port with adjustment wheel for light intensity
• Metal stand with integrated focusing

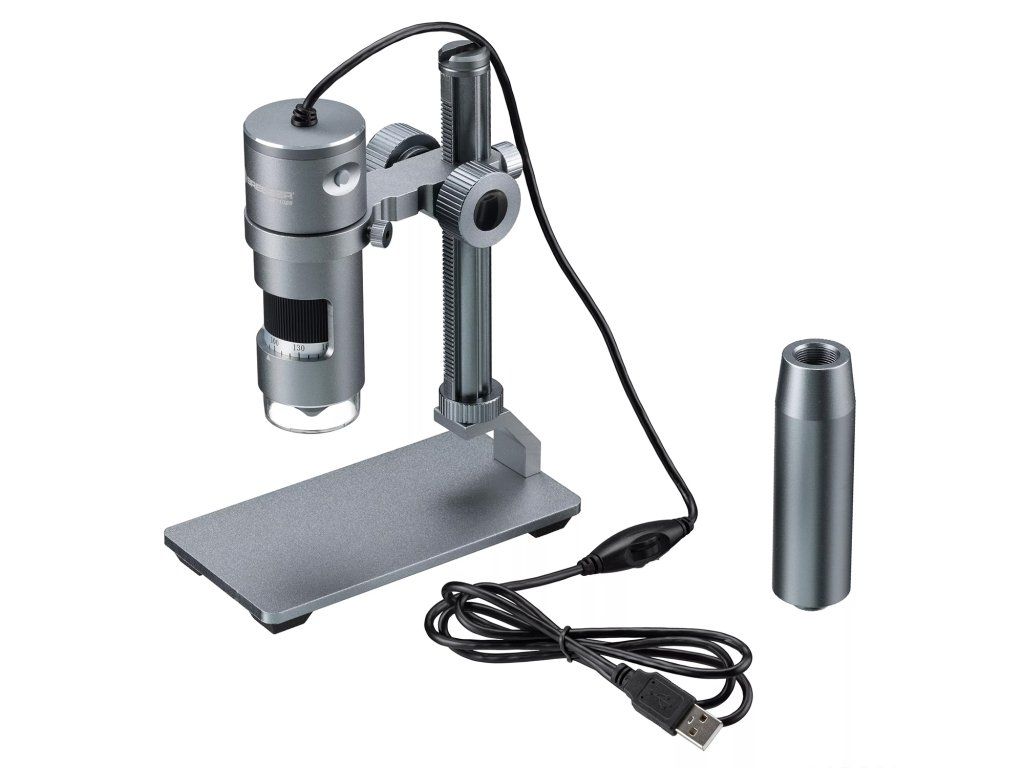

• Extension for tripod
